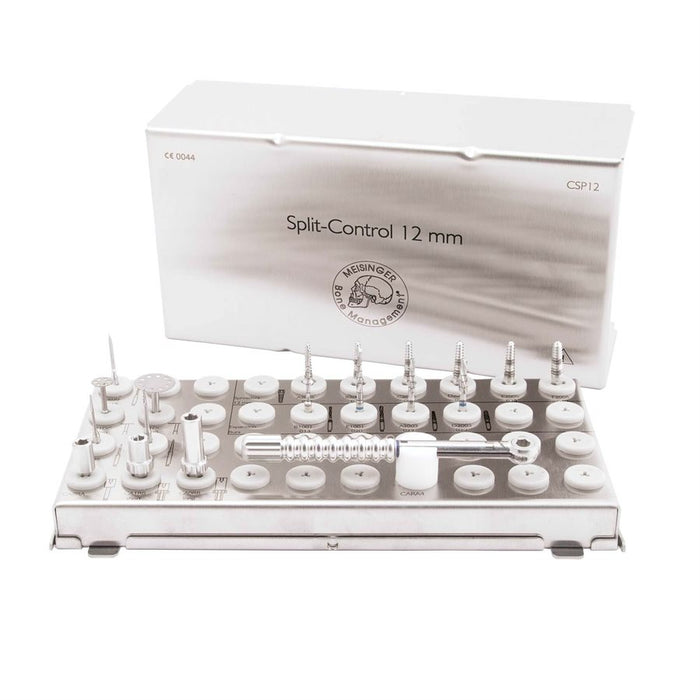

Split Control 12mm-Horizontal Bone Spreading - CSP12

SKU CSP12
by Meisinger
$1,520.25 - $1,520.25
$1,520.25
$1,520.25 - $1,520.25
$1,520.25

Split-Control 12 mm is a system for gentle widening of the alveolar ridge and simultaneous lateral bone condensing in the case of a horizontal bone deficit. With the aid of screw-like condensing and spreading instruments (Spreaders), it is possible to achieve a controlled and gentle dilatation of horizontally resorbed bone (Bone Spreading).

Further, cancellous bone is condensed due to the special geometry of the spreaders (Bone Condensing), so that the primary stability of the inserted implants is increased.

Split-Control 12 mm provides an extensive range of instruments for a controlled dilatation with spreaders with a length of 12 mm.

  • Controlled spreading of horizontally resorbed bone
  • Gentle bone condensing with the aid of non-cutting Archimedes screws
  • Increased primary stability of the inserted implants
  • Effective in increasing the width of narrow alveolar ridges
  • Preparation of the bone for all common implant systems
  • To Be Used On : Surgery

Kit Contents

Accessories

186RF-018-RA - Initial Bur, Pilot Drill, Length = 12.0mm, Ext. Ø = 1.8mm, RA
CARA4 - Straight Ratchet, Length = 84.0mm

Diamond Coated Saws

231DC-070-RA - Length = 0.3mm, Ext. Ø = 7.0mm, RA
231DC-130-RA - Length = 0.3mm, Ext. Ø = 13.0mm, RA

Expansion Burs

A2003 - Purple & Yellow, Drill, Length = 12.0mm, Min. Ø = 1.3mm, Ext. Ø = 2.3, RAL
D2003 - Purple & Blue, Drill, Length = 12.0mm, Min. Ø = 2.03mm, Ext. Ø = 3.0, RAL

Osteotomy Instruments

HM254E-012-RAL - Special Fluting, Ø = 1.2mm, RAL
HM33IL-010-RAL - Tapered Fissure Cross-Cut, Length = 5.5mm, Ø = 1.0mm, RAL

Pilot Burs

B1001-013-RAXL - Red & Yellow, Length = 18.0mm,  Ext. Ø = 1.3, RAXL
E1001-020-RAXL - Yellow & Blue, Length = 18.0mm,  Ext. Ø = 2.0, RAXL

Spreaders

A2005 - Length = 12.0mm, Min. Ø = 1.70mm, Ext. Ø = 2.7
B2005 - Length = 12.0mm, Min. Ø = 1.91mm, Ext. Ø = 2.9
C2005 - Length = 12.0mm, Min. Ø = 2.12mm, Ext. Ø = 3.1
D2005 - Length = 12.0mm, Min. Ø = 2.33mm, Ext. Ø = 3.3
E2005 - Length = 12.0mm, Min. Ø = 2.54mm, Ext. Ø = 3.5
F2005 - Length = 12.0mm, Min. Ø = 3.06mm, Ext. Ø = 4.0

Jollying Aids Spreaders

CA1RB - Length = 18.0mm
CA0RB - Length = 25.0mm
CA8RA - RA, Length = 24.0mm

Made in Germany
