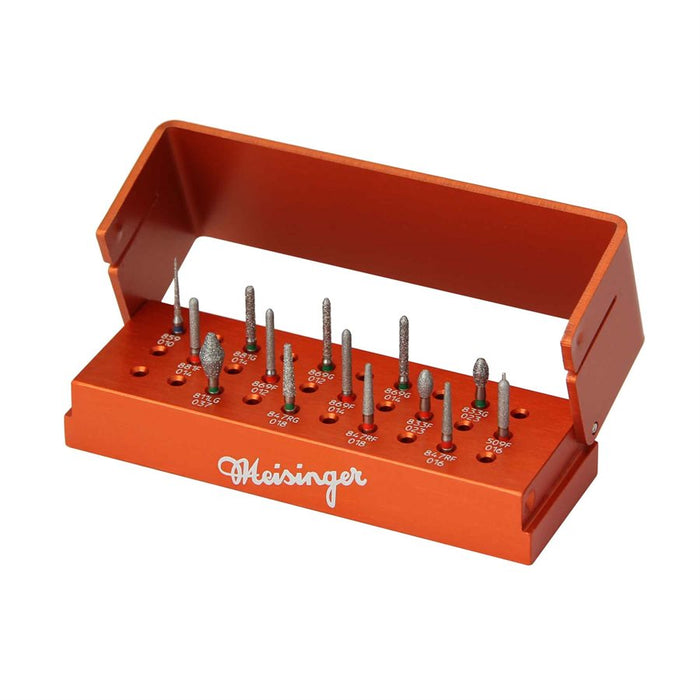

Preparation Crown & Inlay Kit, According to Dr. Athen - 2561
The Athens Preparation & Crown Inlay Kit provides an intelligent compilation of instruments for optimal crown and inlay preparation. The torpedo-like diamond instruments equipped with an axially extending locator pin are suited for the creation of a defined chamfer. The circular chamfer is easily prepared supragingivally, while the polished locator pin is guided around the tooth without pressure.
- To Be Used On : Preparation
- Extraoral / Intraoral : Intraoral
Kit Contents
Diamonds
509F-016-FG - Red, Guide Pin, Fine, Ø = 1.6mm, FG
811LG-037-FG - Green, Long Barrel, Coarse, Ø = 3.7mm, FG
833F-023-FG - Red, Egg, Fine, Ø = 2.3mm, FG
833G-023-FG - Green, Egg, Coarse, Ø = 2.3mm, FG
847RF-016-FG - Red, Round Edge Taper, Fine, Ø = 1.6mm, FG
847RF-018-FG - Red, Round Edge Taper, Fine, Ø = 1.8mm, FG
847RG-018-FG - Green, Round Edge Taper, Coarse, Ø = 1.8mm, FG
859-010-FG - Blue, Long Needle, Medium, Ø = 1.0mm, FG
869F-012-FG - Red, Long Torpedo, Fine, Ø = 1.2mm, FG
869F-014-FG - Red, Long Torpedo, Fine, Ø = 1.4mm, FG
869G-012-FG - Green, Long Torpedo, Coarse, Ø = 1.2mm, FG
869G-014-FG - Green, Long Torpedo, Coarse, Ø = 1.4mm, FG
881F-014-FG - Red, Round End Cylinder, Fine, Ø = 1.4mm, FG
881G-014-FG - Green, Round End Cylinder, Coarse, Ø = 1.4mm, FG
Made in Germany
